Quality Materials And Design

The following are accessories that we either manufacture ourselves or products that have been tested and used with Perma Form Vertical and have proven to work great with our ICF.  When you place your order for forms, let us know what accessories you want shipped to your job site.

Waterproofing
 Wall Finishing
Electrical Boxes
Door & Window Buck System



Waterproofing







    Bonds To:

    Insulated Concrete Forms

    Concrete

    Metal

    Wood

    Asphalt



  • Below Grade

  • Apply with a ½” nap roller or a heavy duty airless sprayer

  • Average coverage is 30-35 sq ft/gal

  • For use on insulated concrete forms, concrete, metal, wood, or asphalt



    Advantages

    • Flexible to move with expansion and contraction of the applied surface

    • High solids-content builds a thick waterproof coating quickly

    • Does not become brittle

    • Water clean-up

    • Contains no asphalt



Click here to view and print the Wall Finishing and Waterproofing Brochure

Wall Finishing



FLEXIBLE CRACK-RESISTANT COATING THAT LOOKS AND FEELS LIKE STUCCO



    Bonds To:

    Insulated Concrete Forms

    EPS Insulation

    Concrete

    Stone

    Wood



  • Above Grade

  • Trowel on product over metal lath

  • Average coverage is 30 sq ft at 3/8” thick

  • Mixing Formula:

    - 50 lbs of white graded sand (fine or medium)

    - 1 gal of STUCCON



    Advantages

    • Weatherproof

    • Compatible with EPS Insulation

    • High Impact Resistant

    • Crack Resistant

    • Uniform Color Throughout

    • Mixes Easily

    • Nail or Drill without Cracking

    • Exterior and Interior Finishes



    Click here to view and print the Wall Finishing and Waterproofing Brochure

Electrical Boxes



Save the extra work and time by installing PVC electrical boxes and conduit prior to pouring Perma Form Vertical walls.

Cut a hole in the form’s panel the size of the electrical box

  • Insert the box with attached conduit prior to pouring- conduit needs to be taller than the height of your Perma Form Vertical wall

  • Secure electrical box with a two foot 2x4 and waler brackets

  • After pouring, wires can be slid down inside the conduit to the outlet or switch

For more detailed instructions, read Perma Form Vertical Installation Instructions.

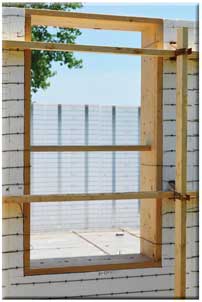

Door & Window Buck System





The Buck System allows doors and windows to be formed in Perma Form Vertical walls. Made out of LVL material, the bucks can match any core thickness providing a solid frame for installing windows and doors. Special grooves in the bucks provide water control and securely attach the buck to the concrete.







Custom Built Buck

(Overhead View)

Bucks can be custom built to window and door rough openings or purchase the material to build on site.
